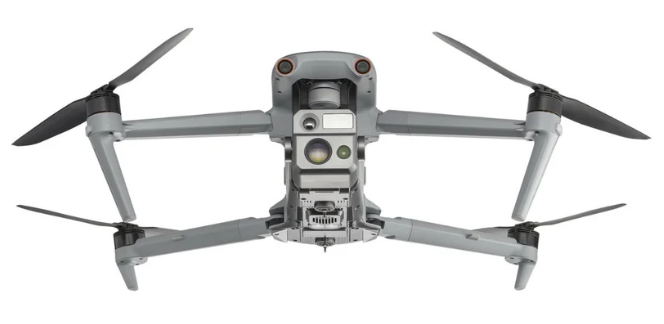

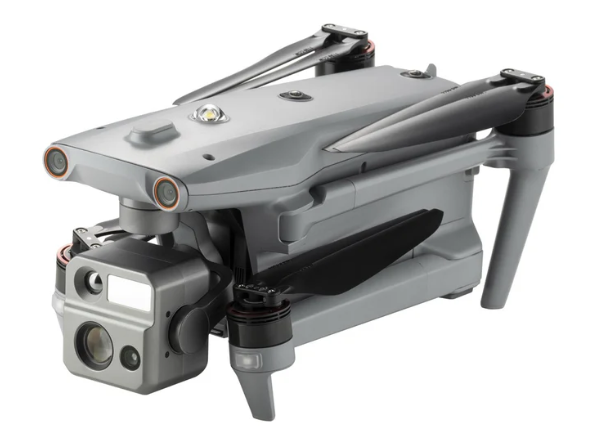

The Autel Robotics EVO MAX 4N is a powerful semi-autonomous drone with clear night-time imaging capabilities and the ability to use thermal imaging.
EVO Max 4N is equipped with a detachable payload perfect for multiple use cases. Two screws remove the payload, making for quick repairs, swaps, or upgrades. But the best about it are the following components:
- Starlight camera
Explore the night with targets locked and tracked. This 2.3MP camera lets you shoot in low-light environments with clarity and in detail.
- Wide camera
This 50MP camera can capture 4K 30fps videos with max ISO of 64000. The Moonlight Algorithm 2.0 boosts post-processing and allows you to capture crisp, detailed images in low-light environments. Expect reduced noise and enhanced HDR in photos.
- Thermal camera
This 640x512 high-resolution thermal imaging camera supports 30fps videos and 16x digital zoom.
- Laser rangefinder
This allows you to get the coordinates and altitude of a target from up to 0.75 miles away just with a tap on the RC screen.
| EVO Max 4N Night Vision Camera Specs | |
| Sensor | Effective Pixels: 2.3M |
|
Lens
|
Focal Length: 35mm (equivalent 41.4mm) |
| FOV：52° | |
| Zoom Range: 1-8x, supports linkage zoom | |
|
ISO Range
|
Auto: ISO100-ISO450000 |
| Super Sensitive Mode: Auto ISO100-ISO450000 | |
| Camera Modes | Single shot (default), long press for continuous shots |
| Photo Format | JPG |
| Photo Resolution | 1920×1200 |
| Video Format | MP4 |
| Video Resolution | 20Mbps (1920×1200 P30) |
| HDR Video | Auto |
| Video Output | Super Sensitive Mode: 1920×1200 P30 |
| EVO Max 4N Thermal Camera Specs | |
| Sensor | Uncooled VOx Microbolometer |
|
Lens
|
FOV：61° |
| Focal length: 9.1mm | |
| Aperture: f/1.0 | |
| Focusing Distance: 2.2m ~ ∞ | |
| Infrared Temperature Measurement Accuracy | ±3℃ or ±3% of reading (using the larger value) @ ambient temperature range from -4℉ to 140℉ (-20℃-60℃) |
| Video Resolution | 640×512@30FPS |
| Photo Size | 640×512 |
| Pixel Pitch | 12um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |

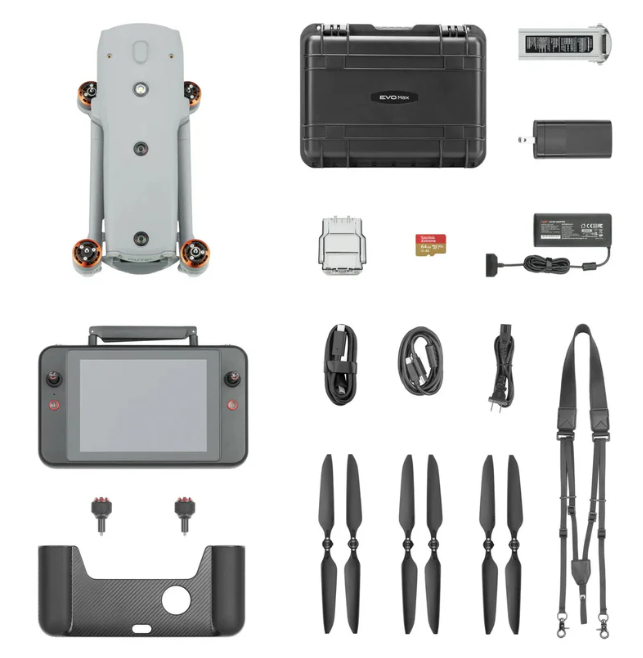

In the Box
- Autel Robotics EVO Max 4N Drone
- Smart Controller V3 with Sticks
- Battery
- Propeller
- Gimbal
- Gimbal Cover
- 64GB SD Card
- Battery Charger and Power Cable
- 2x Pair of Spare Propeller
- Screwdriver
- 4x Screws
- Smart Controller Lanyard
- Smart Controller Cover
- 2x Smart Controller Spare Joystick
- RC Charger
- RC Charging Cable
- Data Cable
- Rugged Case
- User Manual
