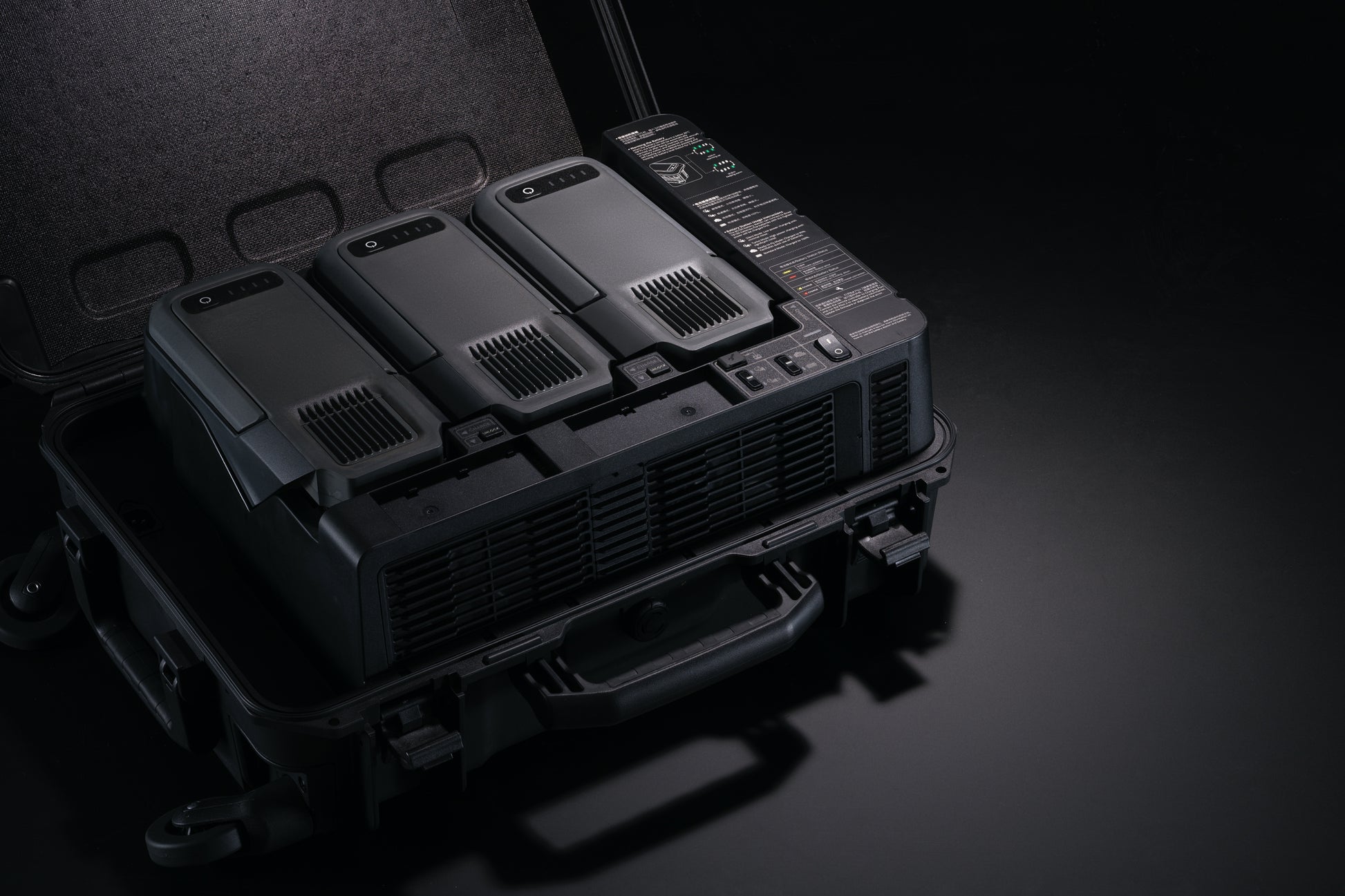

The BS100 Battery Station supports fast, intelligent charging for up to 3 TB100 and 2 WB37 batteries, with multiple charging modes including Rapid Mode (0–100% in 45 mins @ 220V). Integrated with DJI's intelligent battery management system, it enables full status monitoring, auto-discharge, and firmware updates via the remote controller
Specifications
Dimensions: 605 × 410 × 250 mm (L×W×H)
Empty Weight: Approximately 11.8 kg
Output Power:
TB100 Battery Port:
100 V to 110 V: Approximately 1185 W
110 V to 180 V: Approximately 1474 W
180 V to 240 V: Approximately 2184 W
WB37 Battery Port:
100 V to 240 V: Approximately 52 W
USB-C: 5.0 V 3.0 A/9.0 V 3.0 A/12.0 V 3.0 A/15.0 V 3.0 A/20.0 V 3.25 A, up to 65 W output powerOperating Temperature:-20° to 40° C (-4° to 122° F)
Compatibility: DJI Matrice 400

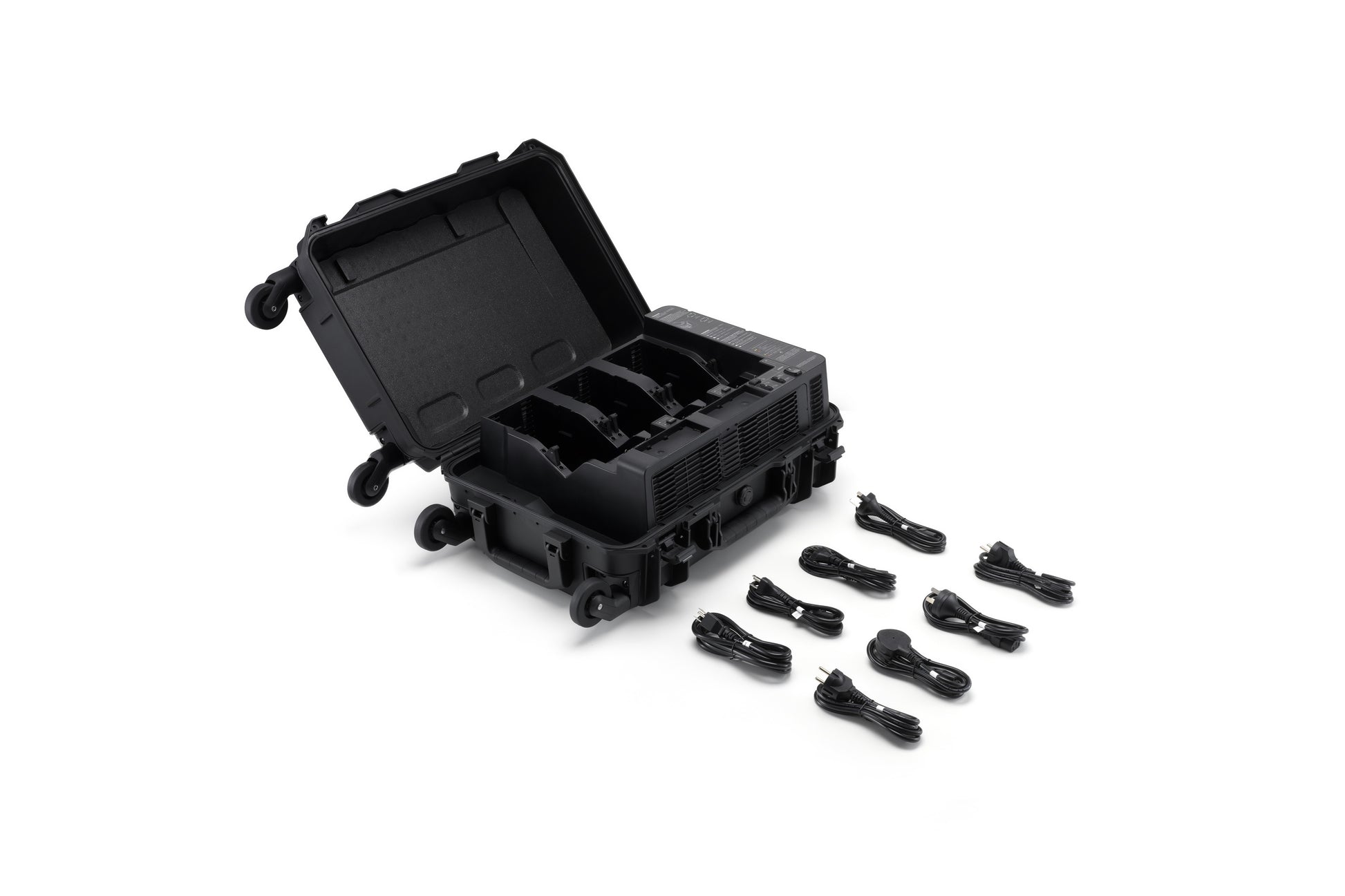

In The Box:
BS100 Intelligent Battery Station × 1
AC Cable (Universal) × 6
AC Cable (Korea) × 1
AC Cable (China) × 1
