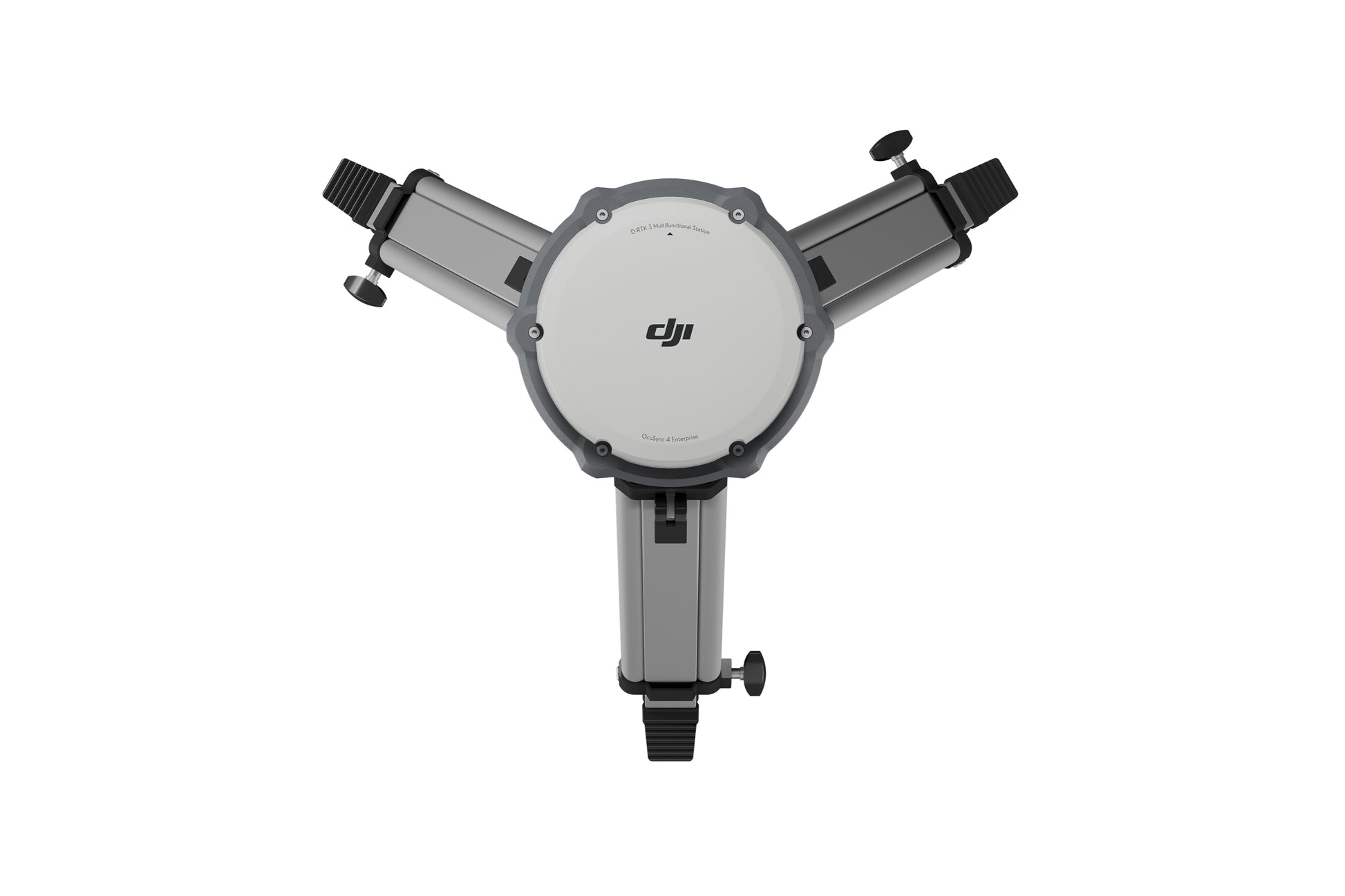

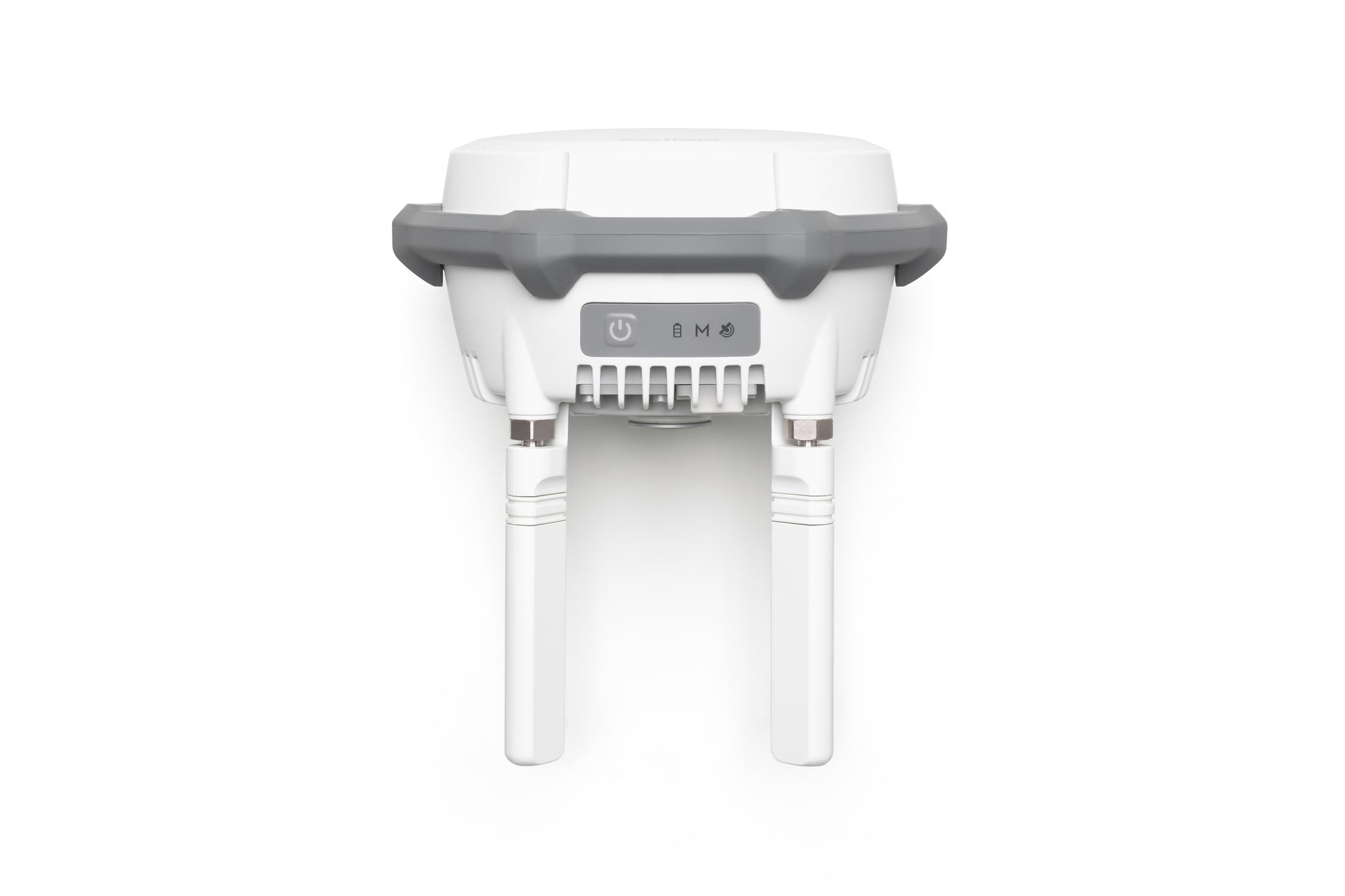

DJI D-RTK 3 Multifunctional Station

DJI D-RTK 3 Multifunctional Station

$2,365.00 USD
$2,365.00 USD
Sale Sold out
View full details

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules, capable of tracking and resolving data from major global satellite navigation systems. It supports multiple data transmission links and can analyze device position and orientation through its built-in high-performance inertial measurement unit. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously, or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI ENTERPRISE app and DJI Terra, offers a one-stop solution for high-precision aerial surveying applications.

Multiple Modes
  • Base Station Mode: Utilizing DJI's O4 Enterprise video transmission system, the four external directional antennas extend RTK coverage at up to 9.32 miles in all directions. Multiple drones can connect to the station for centimeter-level positioning.
  • Rover Station Mode: When used with an additional unit as a base station, this system can act as a rover station, collecting control point coordinates to enhance the accuracy and precision of aerial surveying. This mode also supports Bluetooth 5.1 transmission and Android 10 or above devices.
  • Relay Station Mode: Whether in urban areas or valleys, place the D-RTK 3 system at a high elevation to act as a relay between the remote and the drone. For example, the Matrice 4/4D series can see its range extended up to 15.5 miles. This mode also supports real-time calculations of obstructions and signal quality, prompting pilots on their remote so they can adjust the drone's position to optimize transmission quality.

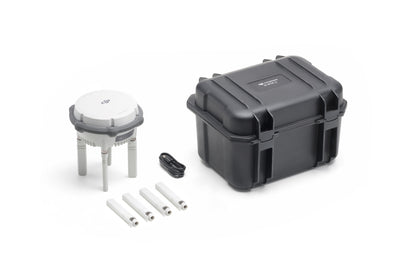

In The Box

D-RTK 3 Multifunctional Station × 1
Spare OcuSync Directional Antennas × 4
USB-A to USB-C Cable× 1

Supported Models

Base Station Mode:

Enterprise:

Matrice 4E, Matrice 4T
Matrice 4D, Matrice 4TD (DJI RC Plus 2 Enterprise)
DJI Matrice 3D/3TD (DJI RC Pro Enterprise)
Matrice 300/350 RTK
Matrice 30 Series
DJI Mavic 3 Enterprise Series

Agriculture:

T60
T50/T25
T40/T20P
DJI FlyCart 30

Relay Station Mode:

Matrice 4E, Matrice 4T



Rover Station Mode:

Supports Bluetooth 5.1, compatible with Android 10 and above


Professional Filmmaking:

DJI Inspire 3*

* Currently, only manual D-RTK 3 position calibration is supported. Please refer to official updates for future feature enhancements.
